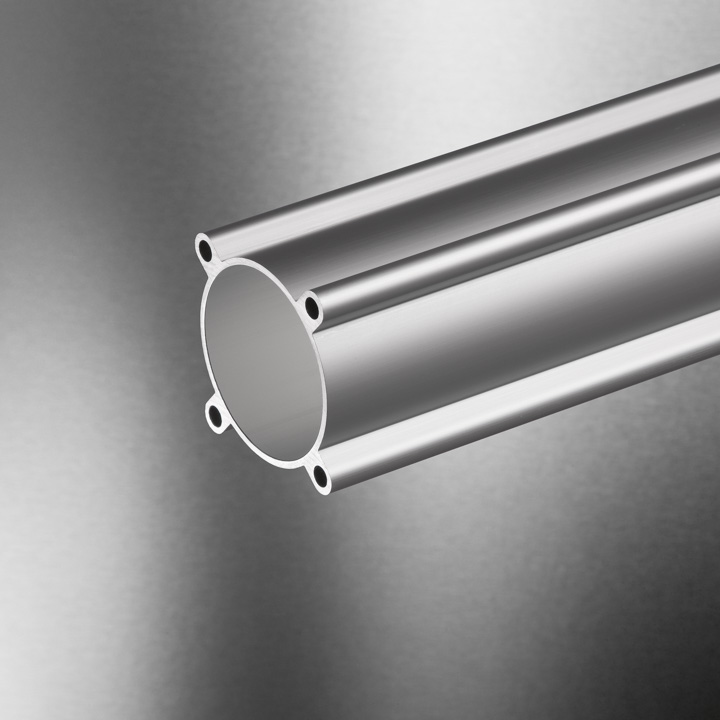

Pneumatic profiles

Cylinder tubes for control and working cylinders are used in pneumatic and low-pressure hydraulic systems.


Outside diameter

Further dimensions on demand

Wall thickness (mm)



To view the prices please register


  • EN AW-6060/6063
  • Warm-hardened
  • tensile strength Rm > 215 MPa

Production process

  • hot extruded via chamber mould calibrated
  • manufacturing lengths, contact possible
  • Dimensional accuracy not given in this area.


  • in fixed lengths
  • to fixed lengths, burr-free, in narrow tolerances


  • Ra ≤ 0,6 μm to NW ≤ 140
  • Ra ≤ 1,0 μm to NW ≤ 200
  • Ra ≤ 1,2 μm to NW > 200


  • hard-anodized, inside and outside
  • thickness 20 μm
  • hardness 420 HV


  • 0,8 mm/m (depends on dimensions)

Drawing profiles

  • on demand
